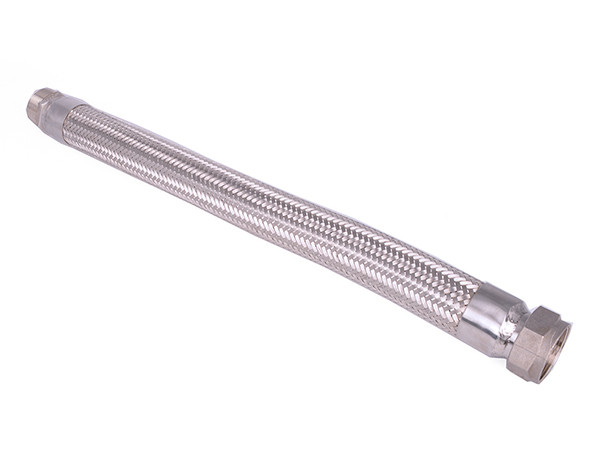

High pressure metal flexible hose minimizing vibrations

Heavy-wall annular corrugated metal hose not only provides high working pressure but also enhances performance in resisting turbulence damage. Hose diameters ranging from 1/4" to 6" are manufactured. Un-braided, single and double are available. It is often used as pump connectors, gas connectors and vibration absorber for its excellent performance in absorbing vibration.

The prominent advantages of metal hose over rubber or other hoses depend on its long service life and resistances against extremely high working pressures and temperatures. In addition, it is ideal for full vacuum applications.

Features:

• Heavy-wall construction;
• Hydro-formed annular hose;
• Maximum pressure 4000psi at ambient temperature;
• Eliminating vibration.

Product description:

• Corrugated hose: T316, T321;
• Wire braid: T304;
• Hose I.D.: 1/4" through 6";
• Max working pressure: 4000psi;
• Working temperature: cryogenic to 1250°F;
• Safety factor: 4:1.

What does item number mean?

• HP - abbreviation of High Pressure;
• 40 - Stainless steel T321, T316 should be specially ordered.
• 00 - unbraided;
• 50 - single braid;
• 51 - double braid;
• -4 - hose inside diameter in SAE Dash.

Notes:

1. Bend radius measured from the centerline of the hose;
2. Working pressure decreases as the temperature increases;
3. For shock pressure and pulsating pressure, consult our sales.
