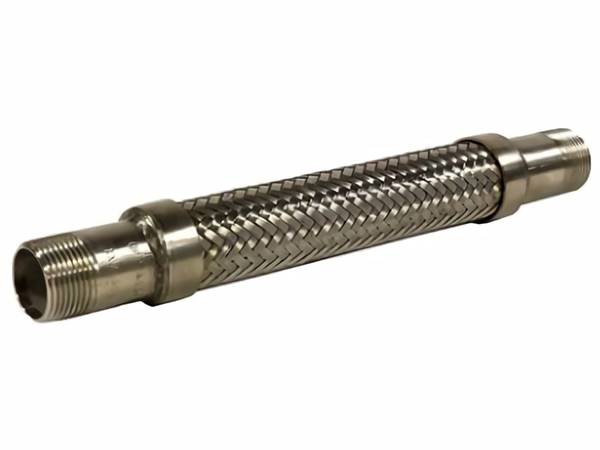

MPT Threaded Flexible pump connector

Stainless steel braided flexible pump connectors, which are designed with high performance in holding higher pressure and temperature, can absorb pump vibration, engine noise and minimize minor misalignment to reduce stress of piping system. It is extensively used in industries.

MPT thread flexible pump connector ranges from 1/2" through 4", and larger are equipped with carbon steel flanges. Other fittings and specifications are tailor-made according to your orders.

Flexible corrugated hose pump connectors are intended for solving pump vibrations where misalignment should be controlled within 1/8inch and maximum working temperature 100°F.

Product description:

• Corrugated hose: T321;
• Braid: T304;
• Ends: carbon steel Male Pipe Thread;
• Max. Working pressure: 825psi (at 70°F);
• Working temperature: up to 1000°F;
• Hose size: 1/2inch through 4inch;
• Length: as required.
• Remark: Working pressure for constant pressures. Pulsating pressure equals to 50% of the rating while pulsating pressure 1/6 of the rating.

Note: Working pressure decreases when the temperature increases.
