Single-walled helical stainless steel braid metal hose

Helically corrugated metal hose features extreme flexibility as well as maintain high working pressure. It is specially designed for the applications where has strict requirement of bending radius. In contrast with annular construction, spiral construction reduces turbulence damage and improves CIP (cleaning in process) capability.

Stainless steel braid not only protects inner corrugated hose but also hold working pressure. The maximum working pressure for single-ply helical corrugated hose is up to 2489psi at ambient temperature.

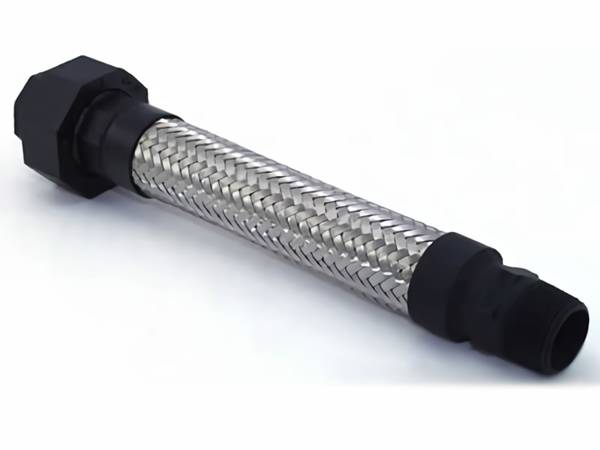

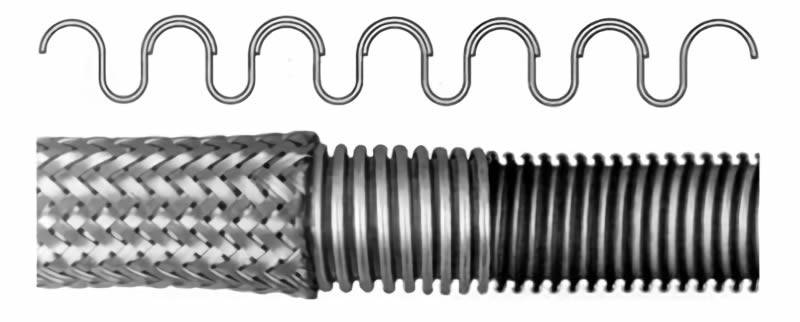

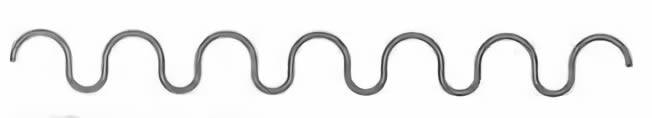

According to different processes, there are two options for your choice:

Two Fabrication Options:

Product description:

• Materials:
• Corrugated hose: T321 or T316;
• Braid wire: T316 or as required;
• Construction: Helical;
• Max. working pressure: full vacuum to 1000 psi;
• Working temperature: cryogenic to 850°F;
• Hose I.D.: 1/4" through 2".

Features:

• Flexible as well as reducing less pressure;
• Extremely flexible;
• Self-draining;
• Cleaning in process capability;
• Minimize in-line turbulence.

What does item number mean?

• UF - abbreviation of Ultra Flexible;
• 80 - Stainless steel T321, T316 should be specially ordered.
• 00 - unbraided;
• 50 - single braid;
• 55 - double braid;
• -4 - hose inside diameter in SAE Dash.

Notes:

• Working pressure is measured at ambient temperature (70°F), check derating factor in Technology for elevated temperature.
• Min bend radius measured from the centerline of the hose.
• Other bore sizes are customized.
