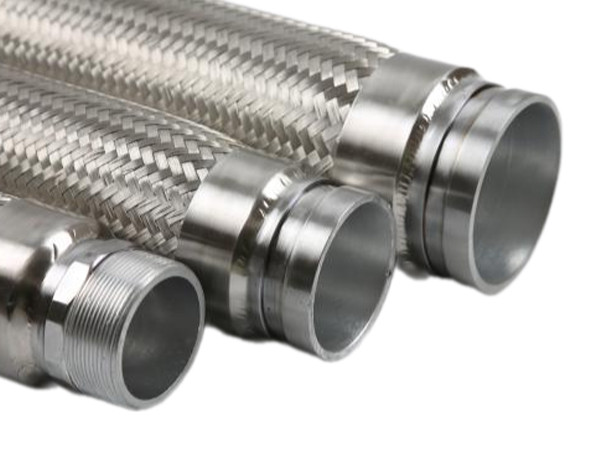

Hydro-formed annular corrugated flexible hose provides minimal residual stress, uniform wall thickness and minimal work hardening. It favors long-lasting service life and flexibility. T316 annular corrugated hose with single or double stainless steel braids is suitable for medium working pressure applications up to 2700psi.
Medium pressure stainless steel braided corrugated metal hoses is frequently used in food industries, automotive fields, chemical transportation and other applications where need absorb vibration as well as flexibility is necessary.
Medium pressure metal hose
| Item No. | Hose I.D. (in.) |
Nos of Braids |
Hose O.D. (in.) |
Static Min. Bend Radius (in.) |
Dynamic Min. Bend Radius (in.) |
Max. Working Pressure (psi) |
Burst Pressure (psi) |
Weight per ft. (lbs.) |
| MP3000-4 | 1/4 | 0 | 0.41 | 1 | 4.5 | 90 | n/a | 0.04 |
| MP3050-4 | 1 | 0.47 | 1800 | 7233 | 0.11 | |||
| MP3051-4 | 2 | 0.53 | 2700 | 9100 | 0.18 | |||
| MP3000-6 | 3/8 | 0 | 0.65 | 1.2 | 5 | 70 | n/a | 0.1 |
| MP3050-6 | 1 | 0.71 | 1558 | 6230 | 0.2 | |||
| MP3051-6 | 2 | 0.77 | 2336 | 9345 | 0.3 | |||
| MP3000-8 | 1/2 | 0 | 0.77 | 1.5 | 5.5 | 70 | n/a | 0.11 |
| MP3050-8 | 1 | 0.83 | 1186 | 4743 | 0.22 | |||
| MP3051-8 | 2 | 0.89 | 1779 | 7115 | 0.33 | |||
| MP3000-10 | 5/8 | 0 | 0.96 | 1.8 | 7 | 57 | n/a | 0.17 |
| MP3050-10 | 1 | 1.02 | 1205 | 4820 | 0.33 | |||
| MP3051-10 | 2 | 1.08 | 1808 | 7230 | 0.49 | |||
| MP3000-12 | 3/4 | 0 | 1.16 | 2.1 | 8 | 43 | n/a | 0.19 |
| MP3050-12 | 1 | 1.22 | 898 | 3591 | 0.37 | |||
| MP3051-12 | 2 | 1.28 | 1347 | 5387 | 0.55 | |||
| MP3000-16 | 1 | 0 | 1.47 | 2.7 | 9 | 43 | n/a | 0.26 |
| MP3050-16 | 1 | 1.53 | 718 | 2872 | 0.5 | |||
| MP3051-16 | 2 | 1.59 | 1077 | 4308 | 0.74 | |||
| MP3000-20 | 1 1/4 | 0 | 1.75 | 3.1 | 10 | 43 | n/a | 0.29 |
| MP3050-20 | 1 | 1.83 | 645 | 2581 | 0.61 | |||
| MP3051-20 | 2 | 1.91 | 968 | 3872 | 0.93 | |||
| MP3000-24 | 1 1/2 | 0 | 2.08 | 3.9 | 11 | 28 | n/a | 0.47 |
| MP3050-24 | 1 | 2.16 | 531 | 2125 | 0.85 | |||
| MP3051-24 | 2 | 2.24 | 797 | 3188 | 1.23 | |||
| MP3000-32 | 2 | 0 | 2.61 | 5.1 | 13 | 14 | n/a | 0.59 |
| MP3050-32 | 1 | 2.69 | 449 | 1797 | 1.11 | |||
| MP3051-32 | 2 | 2.77 | 674 | 2696 | 1.63 | |||
| MP3000-40 | 2 1/2 | 0 | 3.4 | 6.8 | 16 | 14 | n/a | 0.84 |
| MP3050-40 | 1 | 3.5 | 417 | 1669 | 1.64 | |||
| MP3051-40 | 2 | 3.6 | 626 | 2504 | 2.44 | |||
| MP3000-48 | 3 | 0 | 3.88 | 7.8 | 18 | 14 | n/a | 1.18 |
| MP3050-48 | 1 | 3.98 | 346 | 1384 | 2.06 | |||
| MP3051-48 | 2 | 4.08 | 519 | 2076 | 2.94 | |||
| MP3000-64 | 4 | 0 | 4.96 | 9.8 | 22 | 14 | n/a | 1.41 |
| MP3050-64 | 1 | 5.06 | 299 | 1194 | 2.69 | |||
| MP3051-64 | 2 | 5.16 | 448 | 1791 | 3.97 | |||
| MP3000-80 | 5 | 0 | 6 | 12.8 | 28 | 14 | n/a | 2.18 |
| MP3050-80 | 1 | 6.12 | 275 | 1099 | 3.61 | |||
| MP3051-80 | 2 | 6.24 | 412 | 1649 | 5.04 | |||
| MP3000-96 | 6 | 0 | 7.01 | 14.8 | 32 | 11 | n/a | 2.69 |
| MP3050-96 | 1 | 7.13 | 210 | 839 | 4.44 | |||
| MP3051-96 | 2 | 7.25 | 315 | 1259 | 6.19 | |||
| MP3000-128 | 8 | 0 | 9.04 | 18 | 29 | 3 | n/a | 4.88 |
| MP3050-128 | 1 | 9.32 | 250 | 1000 | 8.21 | |||
| MP3051-128 | 2 | 9.6 | 360 | 1446 | 11.53 | |||
| MP3000-160 | 10 | 0 | 11.34 | 21 | 34 | 4 | n/a | 7.42 |
| MP3050-160 | 1 | 11.56 | 175 | 700 | 11.05 | |||
| MP3051-160 | 2 | 11.78 | 310 | 1247 | 14.67 | |||
| MP3000-192 | 12 | 0 | 13.45 | 27 | 44 | 3 | n/a | 11.04 |
| MP3050-192 | 1 | 13.73 | 185 | 745 | 16.71 | |||
| MP3051-192 | 2 | 14 | 325 | 1308 | 22.38 |
